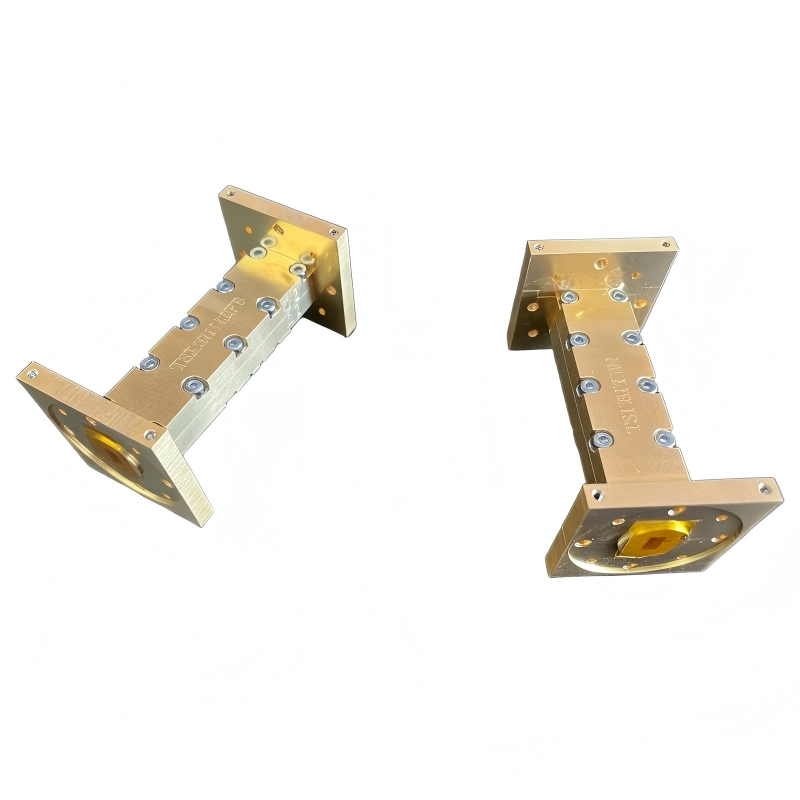

Waveguide high-pass filter is a specialized type of waveguide filter designed to allow high-frequency signals to pass through with low attenuation, while suppressing or attenuating all signals below the cutoff frequency.
Engineered to leverage the inherent cutoff characteristics of waveguide structures, it enables efficient propagation of signals above the design cutoff frequency while blocking low-frequency components.
By utilizing optimized coupling structures such as quarter-wavelength transmission line coupled resonant diaphragms, it effectively pushes the second passband to higher frequencies. This results in significantly improved stopband performance and stronger attenuation of unwanted low-frequency signals.
Constructed with precision-machined waveguide components, it supports high-power microwave operation without risk of arcing or breakdown, while maintaining low insertion loss across the entire passband for high-efficiency signal transmission.
Available in multiple design configurations, including directly coupled half-wavelength resonant cavities and advanced diaphragm-coupled structures, to meet diverse performance requirements for stopband suppression, power handling, and frequency selectivity.
