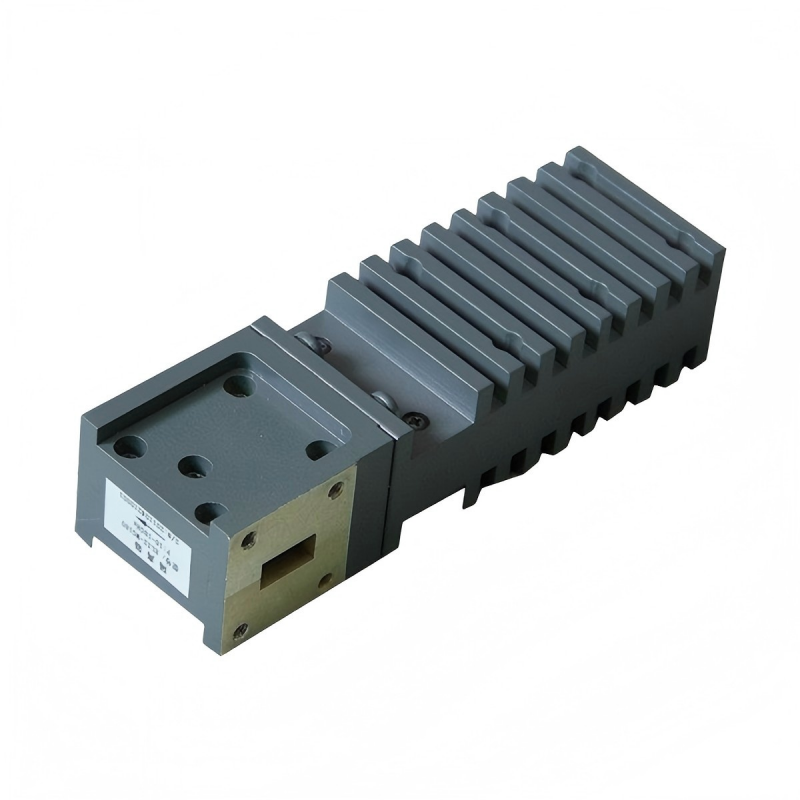

High-power waveguide isolator acts as a critical safety barrier in high-power microwave systems.
Specially optimized for high-power microwave scenarios, it stably withstands high continuous wave and pulsed power. It maintains reliable operation under extreme working conditions and effectively adapts to long-duration high-load service requirements.
It provides outstanding reverse suppression capability with typical isolation above 20 dB. It thoroughly blocks reverse signal transmission and power leakage, purifies system spectrum and protects front-end signal sources and core components from reflected power damage.
Adopting precision impedance matching and optimized internal structural design, the forward insertion loss is controlled below 0.3 dB. It minimizes signal attenuation during transmission and ensures high-efficiency power and signal delivery.
Integrated with high-strength metal waveguide housing and high-performance ferrite materials, it features high breakdown strength and outstanding thermal conductivity. Reasonable heat dissipation design avoids performance degradation or device failure caused by heat accumulation in high-power operation.
