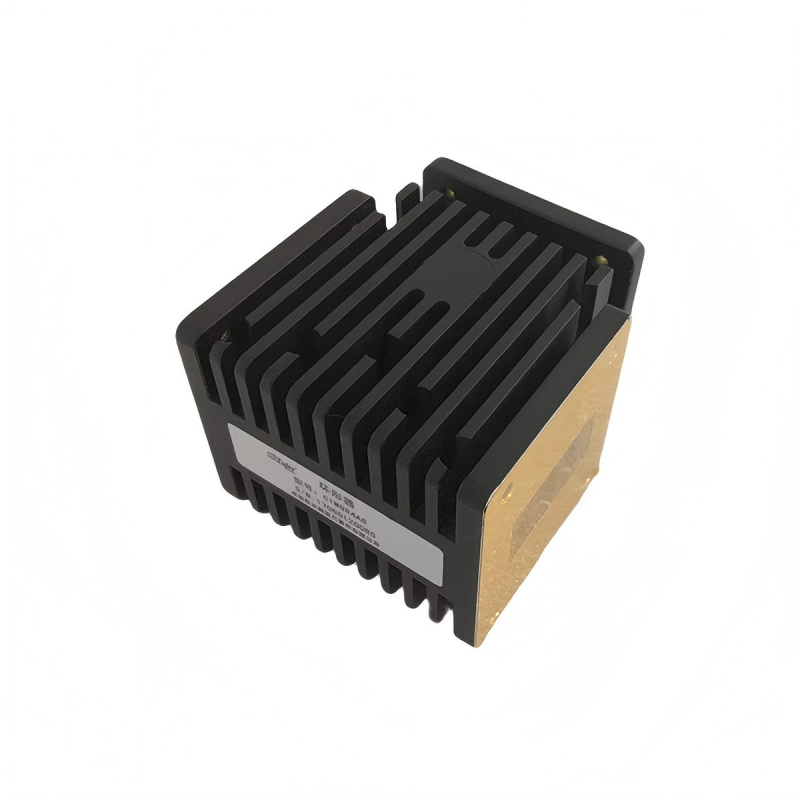

High-power waveguide circulator is a core non-reciprocal component in high-power microwave systems.
Engineered for high-power microwave systems, it supports continuous and pulsed operation at kW to MW power levels. The robust waveguide structure and high-breakdown design prevent arcing and voltage breakdown, ensuring reliable performance in demanding high-power applications.
Optimized electromagnetic design, combined with precision-machined waveguide cavities and high-performance ferrite cores, delivers low insertion loss across the operating band. It maintains high isolation between non-consecutive ports, effectively preventing reflected power from damaging sensitive system components.
Utilizing high-quality spinel ferrite cores with high saturation magnetization, low loss, and optimized linewidth, it operates efficiently in the gyromagnetic region. The permanent magnet biasing provides a stable 1500–2500 Gs magnetic field to maintain consistent performance under varying conditions.
Equipped with specialized heat dissipation structures such as cooling fins, water-cooling channels, or hermetic sealing for high-power applications. Reduced tuning elements and enhanced structural rigidity minimize thermal stress, prevent ferrite overheating, and ensure long-term reliability in continuous high-power operation.
