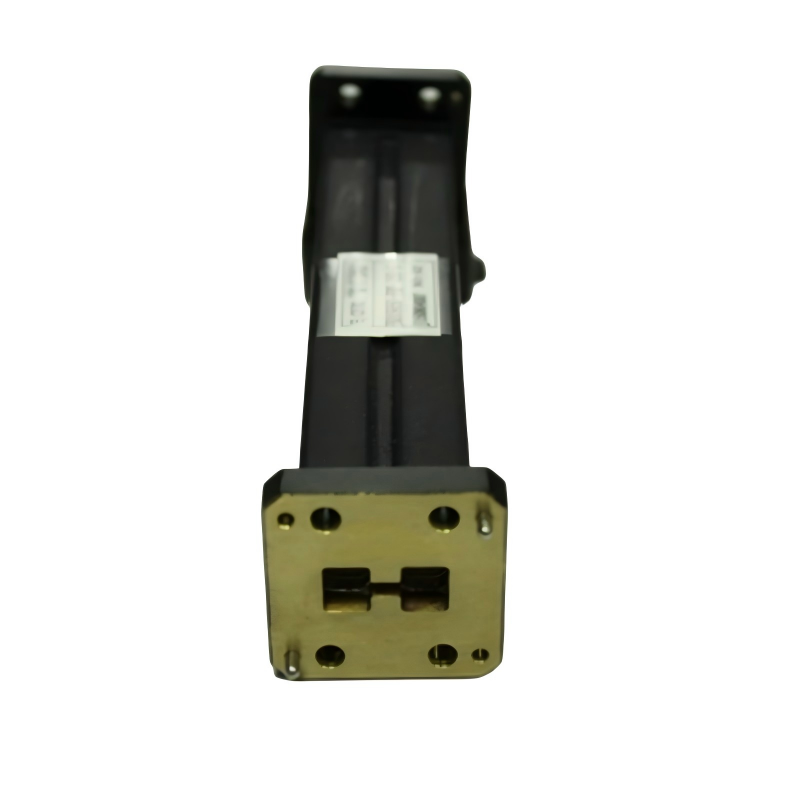

Dual Ridge Flexible Waveguide

Non-twistable flexible waveguides are RF/millimetre-wave transmission components designed specifically for buffered connections between microwave equipment and feed lines. Featuring a structure that allows controlled bending while prohibiting torsion, they perfectly address the challenges posed by installation misalignment and dynamic stress, preventing electromagnetic performance degradation and structural damage.

Core Structure and Materials

• Inner Conductor (Core): Interlocking metal segments reinforced by hermetic welding to prevent torsional deformation.
• Material: Silver-plated brass.
• Outer Sheath: Silicone rubber.
• Interface Flanges: Standard WR series waveguide flanges fitted at both ends, made of nickel-plated brass.

Non-twistable flexible waveguides Specifications

“
