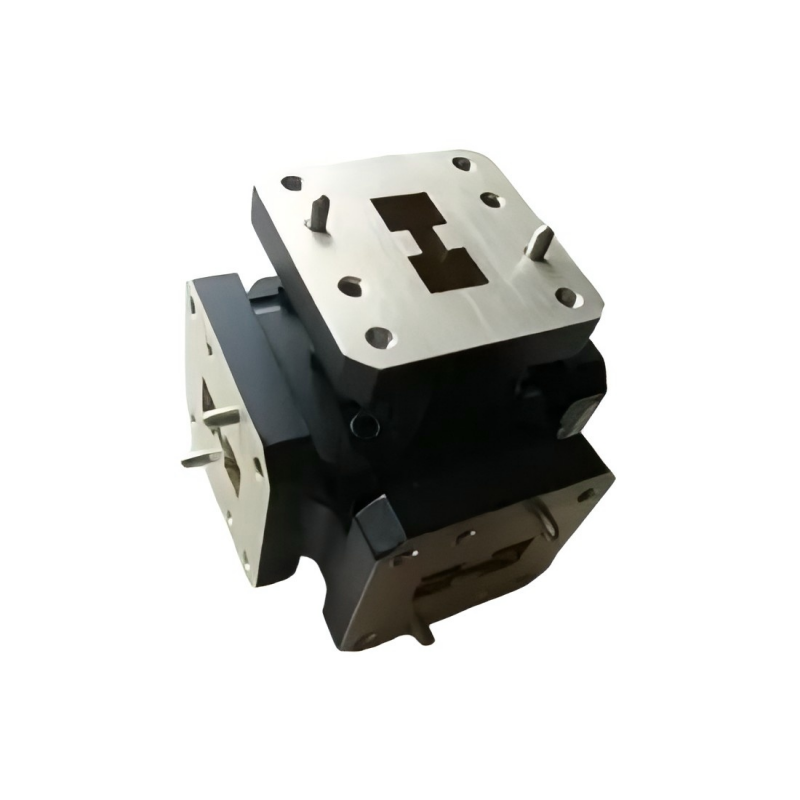

The Double-Ridged Waveguide Magic Tee and Power Divider is a 180° hybrid power divider based on the double-ridged waveguide structure. As a critical component in microwave circuits, it is configured with four independent ports to integrate power division, power combining and signal isolation functions.
With optimized double-ridged gradual transition profiles and embedded metal matching components, it achieves excellent broadband performance, supporting an operating frequency range of more than one octave. The compact integrated structure guarantees high structural stability and convenient system integration.
When signals are fed into one collinear port in odd symmetric mode, power is equally distributed to two balanced arms with reverse electric field phases. No unwanted power coupling occurs at the opposite collinear port.
For signals injected from the other collinear port in even symmetric mode, energy is evenly transmitted to two balanced arms with identical electric field directions, while maintaining complete isolation from the first collinear port.
