Double-Ridge Waveguide Calibration Kit is a precision tool designed for calibrating Vector Network Analyzers (VNA), specifically to correct systematic errors in double-ridge waveguide transmission line measurements and ensure the accuracy of test results. Below is a detailed introduction to the kit:
Comprehensive 12-Term Error Correction
The kit corrects all 12 systematic errors encountered in VNA double-ridge waveguide measurements, including directivity errors, source match errors, load match errors, reflection tracking errors, transmission tracking errors, and crosstalk errors, delivering fully calibrated, reliable measurement data.
Optimized for Ultra-Wideband Applications
Double-ridge waveguides are widely used in ultra-wideband scenarios due to their broad operating frequency range and compact size, such as airborne reconnaissance radar, multi-band jammers, regional integrated electronic information systems, and other electronic warfare systems. The calibration kit is purpose-built to meet the high-precision measurement requirements of double-ridge waveguide transmission lines in these demanding environments.

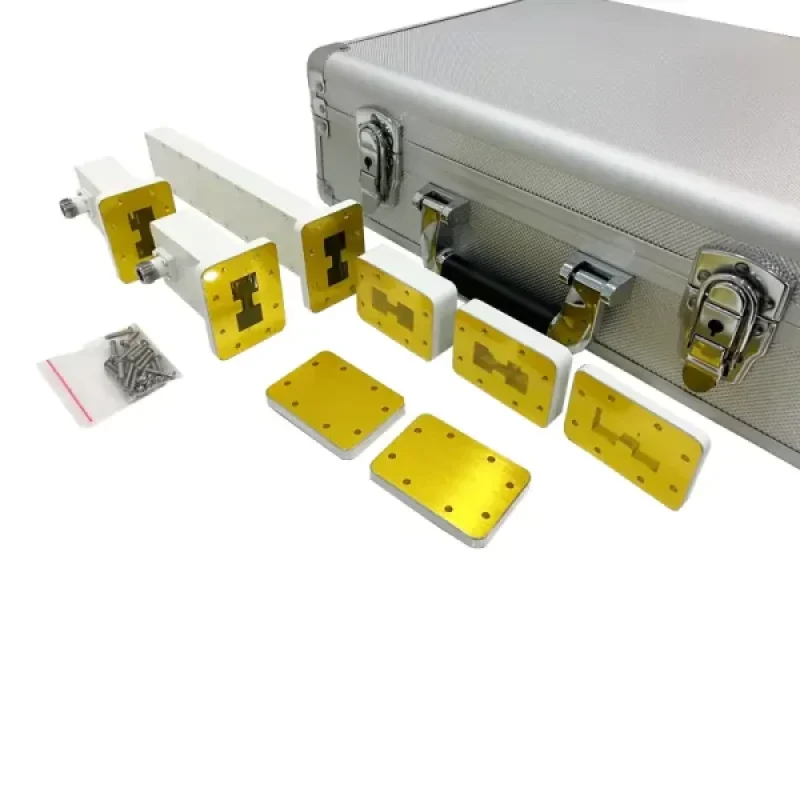

| No. | Description | Parameter | Qty |
| 1 | Waveguide to Coaxial Adapter | Each of Male and Female Connector | 2 |
| 2 | Waveguide Matched Termination | VSWR≤1.03 | 1 |
| 3 | Waveguide Short Plate | VSWR≥60 | 2 |
| 4 | 1/4λ Precision Waveguide Section | L=1/4λ | 1 |
| 5 | 1/8λ Precision Waveguide Section | L=1/8λ | 1 |
| 6 | 3/8λ Precision Waveguide Section | L=3/8λ | 1 |
| 7 | Packing Case of Aluminum Alloy | / | 1 |
| 8 | Screws | / | 1 Set |
