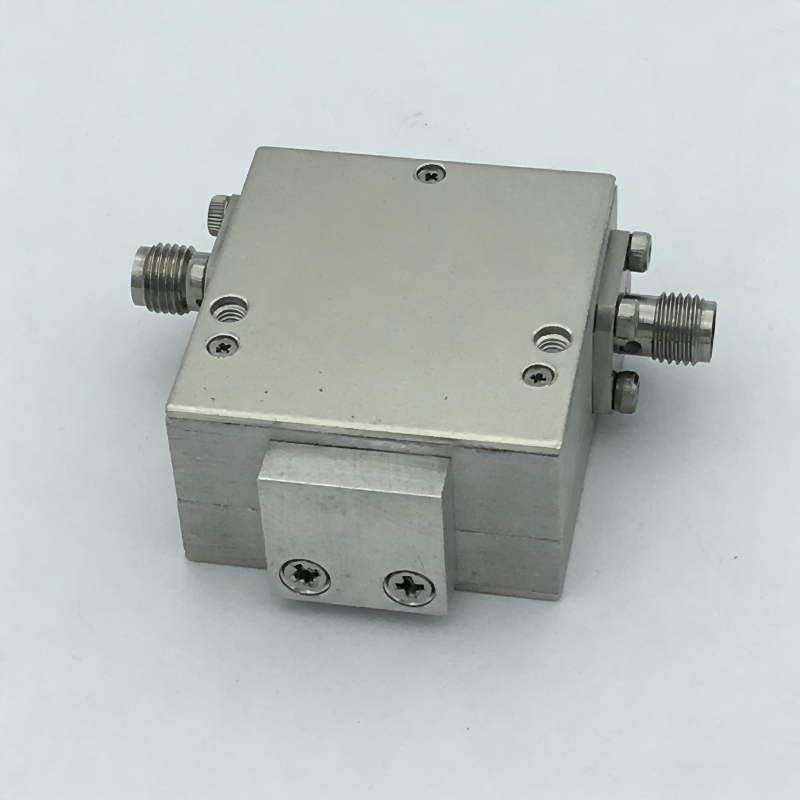

Broadband isolators deliver consistent high isolation and low insertion loss across multi-octave frequency ranges. They are engineered with sophisticated matching networks to maintain excellent non-reciprocal performance over extremely wide bandwidths, making them indispensable for broadband test, EMC, and multi-band communication systems.
Broadband isolators are advanced two-port non-reciprocal devices designed to operate flawlessly across exceptionally wide frequency ranges, often spanning multiple octaves. Leveraging optimized ferrite materials and wideband matching circuitry, they provide uniform forward transmission and high reverse isolation without performance drop-off, ensuring signal integrity in the most demanding wide-spectrum applications.
Working Principle
Utilizing a coaxial or stripline Y-junction with a high-grade ferrite core and a carefully designed impedance matching network, the device maintains the gyromagnetic resonance condition over a very broad band. One port is internally terminated. Forward energy (Port 1→2) passes with a flat, low-loss response. Reverse energy (Port 2→1) is steered to the internal load, sustaining high isolation across the entire frequency range. The design overcomes the typical bandwidth limitations of ferrite devices through multi-section matching and material innovation.
Key Features
Multi-Octave Performance: Frequency ranges from 0.5 GHz to 18 GHz, 2 GHz to 26.5 GHz, and custom bands are readily achievable.
Flat, Stable Response: Insertion loss and isolation curves are smooth and ripple-free across the band.
High Reverse Isolation: Typically >18 dB across the full bandwidth, with no narrow-band degradation.
Low Forward Loss: Keeps signal attenuation minimal, preserving system dynamic range.
Robust Build: Available in both coaxial and compact drop-in packages for versatile system integration.
