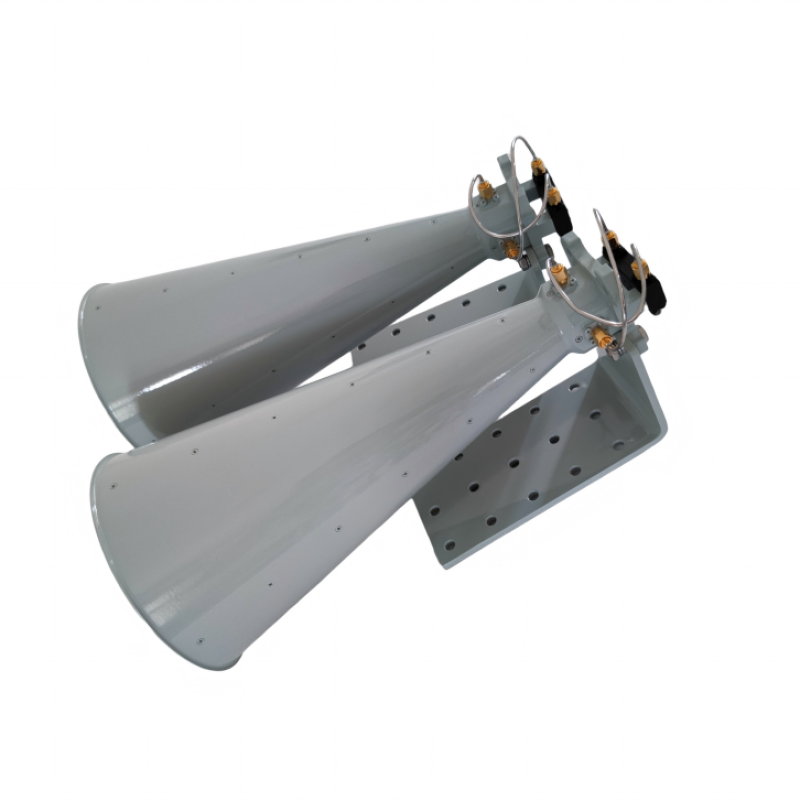

Broadband Dual Circular Polarized Horn Antenna-Dual Linear Polarization Synthesized

This antenna adopts a quad-ridged ultra-wideband dual-linear polarized horn as the core radiator.

Two independent sets of broadband 90° hybrid couplers are applied for separate orthogonal polarization synthesis,

to deliver full-bandwidth, high-isolation and co-beam dual circular polarization output.

It serves as a high-end preferred structure to replace stepped-diaphragm dual circularly polarized horn antennas in ultra-wideband applications.

Full-polarization EMC testing antennas for broadband anechoic chambers
Broadband electronic reconnaissance, spectrum monitoring and jamming countermeasure systems
Integrated multi-band TT&C and communication feed sources
Millimeter-wave compact range and broadband test field measurement
Radar equipment requiring co-aperture, dual-handed circular polarization and ultra-wideband coverage

Specifications
