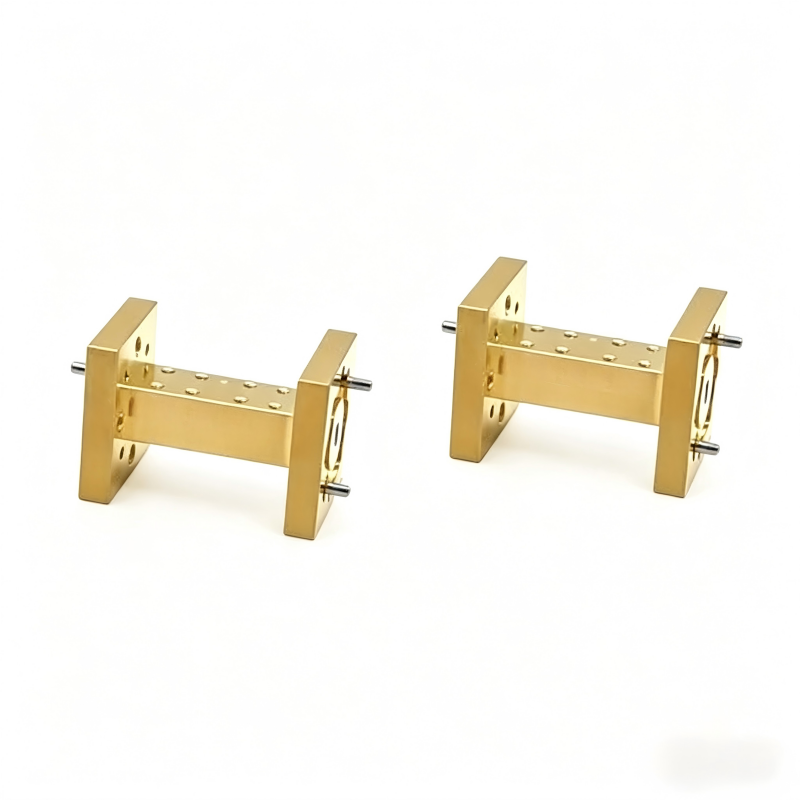

Waveguide low-pass filter is a passive microwave component designed to allow low-frequency microwave signals to pass through with minimal attenuation, while strongly attenuating and blocking high-frequency signals, harmonics, spurious emissions, and millimeter-wave components.
Sharp High-Frequency Rejection
It is engineered to provide a steep roll-off above the cutoff frequency, effectively blocking unwanted harmonics, spurious signals, and high-frequency interference. This ensures clean spectral purity by attenuating all out-of-band high-frequency components.
Low Insertion Loss in the Passband
Thanks to optimized waveguide geometry and high-precision machining, the filter maintains very low insertion loss across the entire passband, ensuring efficient and undistorted transmission of low-frequency microwave signals.
High Power Handling Capability
Constructed with robust all-metal waveguide structures, it can withstand high-power microwave operation without arcing, breakdown, or structural damage, making it suitable for high-power radar, transmitters, and communication systems.
Rugged Mechanical & Environmental Stability
The monolithic metal construction offers excellent mechanical rigidity, vibration resistance, and temperature stability, ensuring consistent electrical performance in demanding environments such as aerospace, defense, and industrial applications.
